Woodworking is a craft that has been practiced for centuries, and with the advancements in technology, it has become even more accessible and precise. Two popular tools used in woodworking today are the CNC router and the laser cutter. Both of these machines offer unique capabilities and advantages, but choosing the right one for your woodworking projects can be a daunting task. In this blog post, we will explore the features and benefits of each machine to help you make an informed decision.
CNC Router for Woodworking
A wood CNC router is a computer-controlled cutting machine that uses a rotating tool to carve out intricate designs on various materials, including wood.
Types

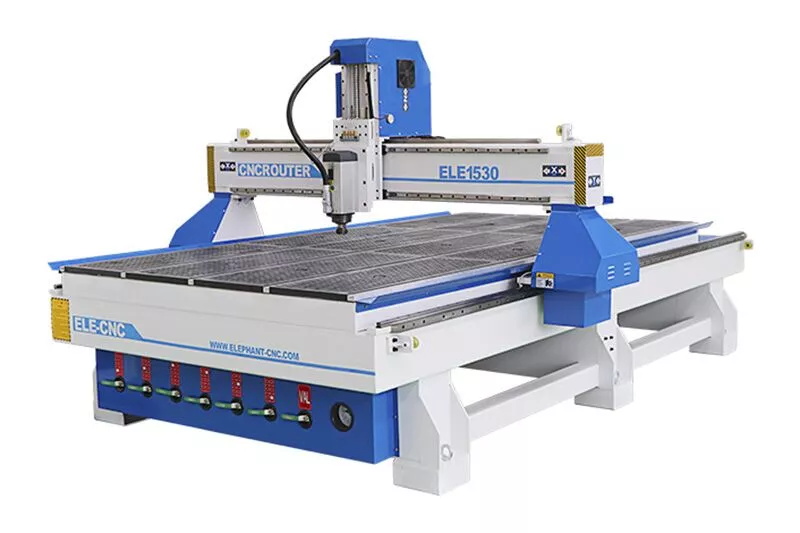

- 3 axis wood cutting CNC machine

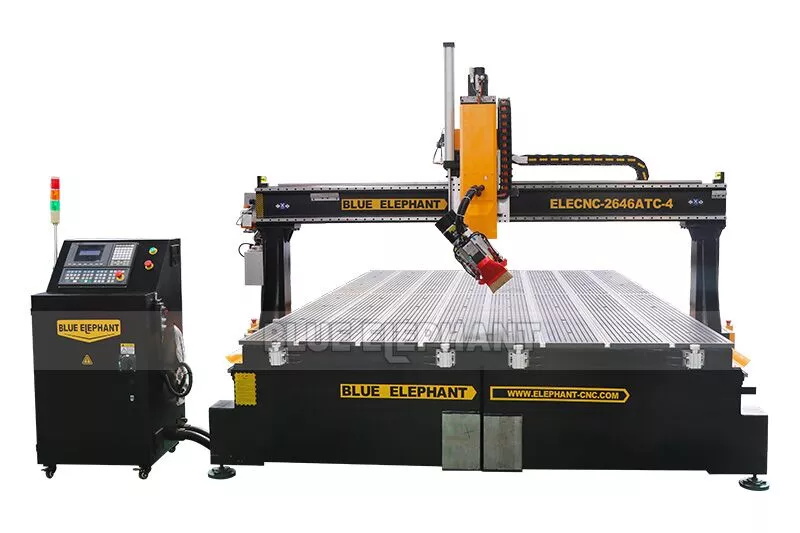

- 4 axis wood cutting and engraving machine

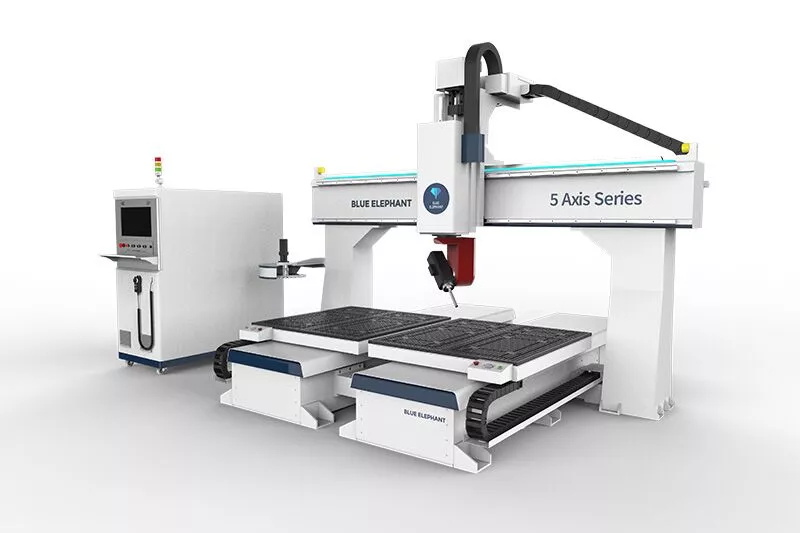

- 5 axis wood machining center
- Rotary axis wood CNC router

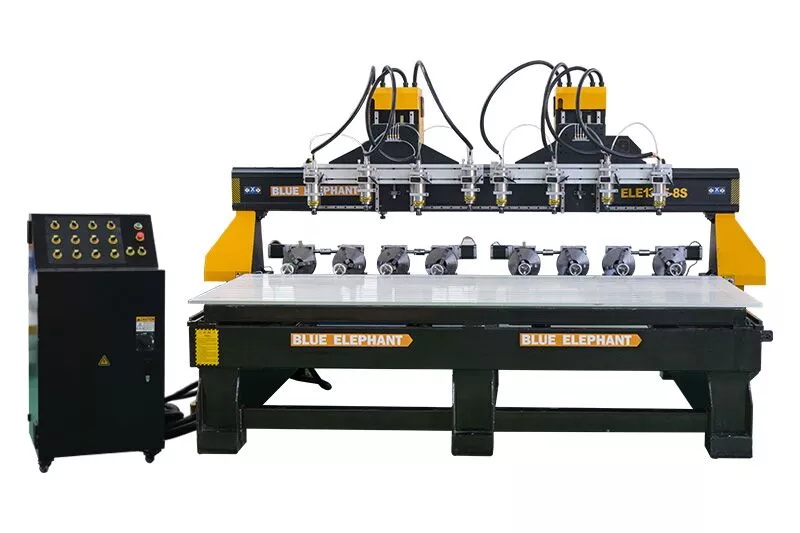

- Multi-head wood CNC router

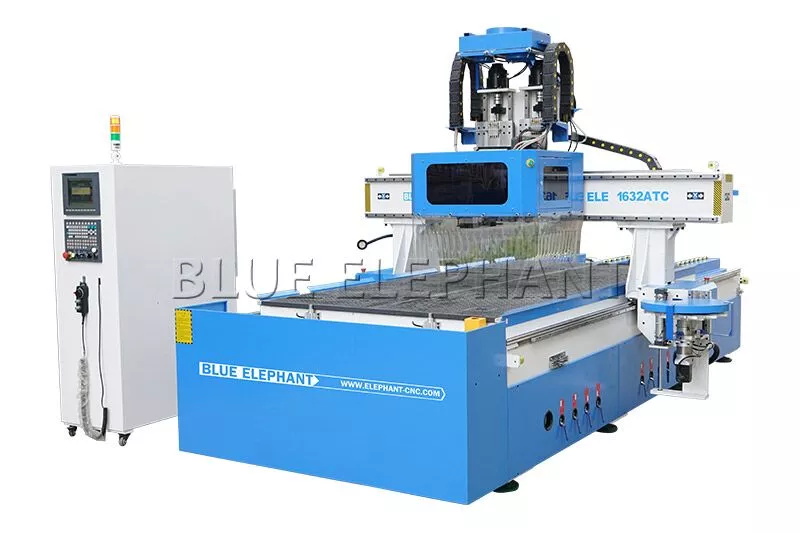

- ATC CNC woodworking machine
Parameters
| X,Y axis travel |
option: 1300*2500mm; 1500*3000mm, 2000*3000mm; 2000*4000mm, 2600x4600mm, etc. |
| Z axis travel |
option: 400mm, 500mm, 600mm, etc. |
| Spindle type |
air cooling spindle/ water cooling spindle |
| Rotary device |
Optional |
| Tool magazine |
Linear/ Carousel type auto tool changer |
| Tool holder with collect |
φ4, φ6, 1/8, 1/2 |
| Control system |
Taiwan Syntec controller, option：Taiwan LNC |
| Driving system |
1300W Leadshine servo motor and servo drivers. option: Japan Yaskawa servo |
| Reducer |
Japan SHIMPO reducer |
| Machine structure |
Heavy duty body with quenching treatment |
| Work table |
Aluminum T-slot worktable; Full vacuum worktable; Vacuum & T-slot worktable |
| Positioning cylinder |
Optional: 7pieces (X2, Y3) |
| Linear guide |
Taiwan linear guide |
| Transmission |
Taiwan / Germany Helical Rack and Pinion
Taiwan TBI high precision ball screw |
| Lubrication system |
1.5L automatic lubrication system/Manual lubrication system |
| Cables |
Germany Igus cables with CE, cUL certificate |
| Compatible software |
Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language |
G Code & M Code |
| Working voltage |
220V 1PH/3PH; 50HZ/60HZ
380V 3PH 50HZ/ 60HZ |
Advantages
One of the key advantages of a CNC router is its precision. It can create intricate cuts and shapes with incredible accuracy, allowing you to achieve detailed and complex designs that would be difficult to replicate by hand. Another significant advantage of CNC routers is their versatility. They can handle a wide range of woodworking tasks, from cutting and shaping to carving and engraving. With the right software and tooling, you can create everything from furniture components to decorative items with ease. CNC routers also offer the flexibility to work with different types and thicknesses of wood, allowing you to explore various woodworking projects.
Working video
Price
In the CNC machine market, the wood CNC cutting machine price usually starts from $2,000. However, there is almost no upper limit on the maximum wood cutting machine price. Depending on the type and configuration or brand of the woodworking CNC router machine, the price can be as high as more than $100,000. For example, the small hobby wood CNC machine price ranges $3,000 to $6,000. The 4 axis CNC wood cutting machine has the price range of $14,000 to $20,000. And the automatic tool change wood CNC router price is around $25,000. The 5 axis machining center price can reach $100,000 or even more.
Laser Cutter for Woodworking
Types

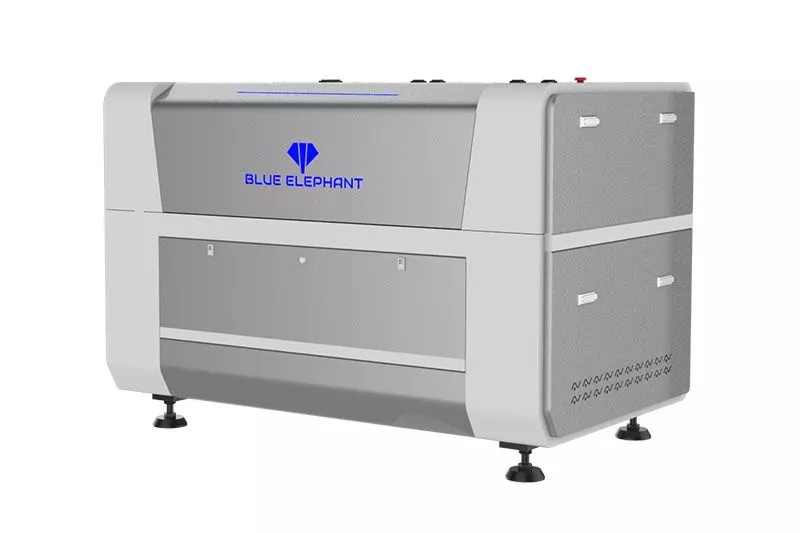

- Co2 laser cutting machine
- Mixed laser cutting machine
Parameters
| Laser type |
CO2 laser |
| Laser power |
Optional: 100W, 150W, 200W, 300W, etc. |
| Working area |
optional: 1300x900mm, 600x400mm, 900x600mm, 1600x1000mm, etc. |
| Worktable |
Honeycomb or knife blade |
| Cutting thickness |
0-25mm acrylic (depending on actual cutting conditions) |
| Power supply |
220V, 50/60Hz |
| Cooling system |
CW300/CW500/CW5200/CW6000 |
Advantages
When it comes to woodworking, a laser cutter offers some unique advantages. One of the standout features of a laser cutter is its speed. It can cut through wood quickly and efficiently, making it an excellent choice for large-scale production or projects with tight deadlines. In addition to speed, a laser cutter is highly effective at creating intricate detailing. The laser beam is incredibly precise, allowing you to achieve intricate designs, intricate patterns, and fine engravings. This level of detail is especially beneficial if you're working on artistic or decorative pieces where precision is crucial.
Working video
Price
As to say the wood laser cutting machine price, the most entry level wood laser cutter price is about $3,500. But the high end laser cutting machine price or industrial laser cutting machine price will up to $100,000.
Choose Wood CNC Router or Wood Laser Cutting Machine?
Now that we have explored the features and advantages of both the CNC router and the laser cutter, let's consider how to choose the right tool for your woodworking projects.
Project Requirements
Assess the specific requirements of your projects. Consider the size, complexity, and intricacy of the designs you intend to create. If you need high precision and versatility, a CNC router might be the better choice. However, if speed and intricate detailing are your priorities, a laser cutter could be the ideal option.
Budget and Cost
Evaluate your budget and the cost of the machines. CNC routers tend to be more expensive compared to laser cutters, so consider your financial constraints before making a decision. Keep in mind that while a CNC cutting machine may have a higher upfront cost, it offers versatility and can handle a wide range of woodworking tasks, potentially providing more value in the long run.
Learning Curve
Consider your familiarity and expertise with the machines. CNC routers generally require some knowledge of CAD/CAM software and woodworking techniques. Laser cutters, on the other hand, may have a slightly steeper learning curve due to the intricacies of laser settings and safety protocols. Assess your willingness to learn and invest time in mastering the machine.
Safety Considerations
Take into account the safety requirements associated with each machine. Both CNC routers and laser cutters have their safety protocols, but laser cutters require extra precautions due to the laser beam. Ensure that you have the necessary safety equipment and knowledge to operate the machine safely.
Word At Last
In the end, the choice between a CNC router and a laser cutter for woodworking depends on your specific needs, project requirements, budget, and expertise. CNC routers offer precision, versatility, and the ability to work with different types of wood, while laser cutters provide speed and intricate detailing for woodworking. Assess your priorities and consider the factors mentioned above to make an informed decision. Remember, both machines have their unique advantages, and choosing the right one will enhance your woodworking experience and help you bring your creative ideas to life.
