Introduction:

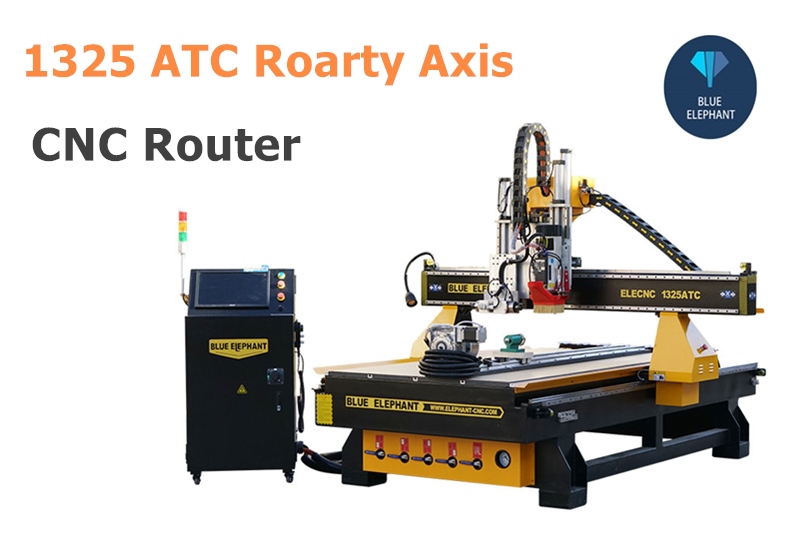

This 4×8 cnc router is equipped with a movable rotary device and a horizontal spindle. It is more convenient to use for 3D cylindrical engraving and side punching and slotting. The rotary device is movable and independent, which provides highly flexible operation.
Major parameters of this 1325 CNC router machine
| Description |
Parameter |
| X,Y,Z Working Area |
1300*2500*300 mm |
| Control system |
MW2200 control system with computer screen |
| Working Voltage |
380V, 3phase, 50Hz (Option) |
| Spindle |
9kw HQD air cooling ATC spindle+3.5KW horizontal spindle |
| Inverter |
11kw Fuling inverter |
| Motor and driver |
Leadshine 750W servo system |
| Table Surface |
Vacuum and T-slot table |
| Rotary device |
200mm diameter rotary device |
| X,Y axis |
Taiwan PMI 25# square guide way for X,Y axis |
| Z axis |
Taiwan TBI ball screw for Z axis |
| Vacuum pump |
2Kw dry vacuum pump(Double segment)*2 |
| Tool change |
linear tool change magazine |
Contact us to know more details of this ATC CNC router.
