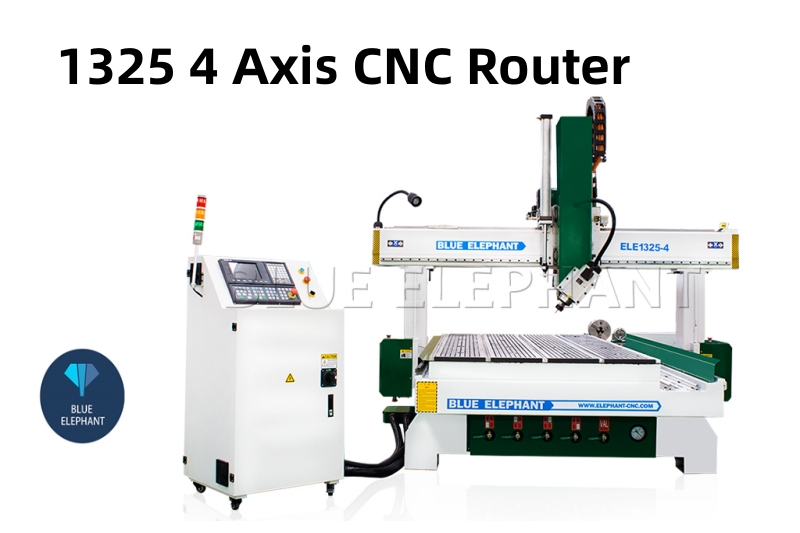

| Model | ELE1325-4 |
| Working area | 1300*2500*400mm |
| Control system | Taiwan SYNTEC6MB Controller |
| Working Voltage | 380V or 220V |
| Spindle | 6kw HQD air cooling spindle, spindle rotation in 180 degrees, 18000RPM |
| Spindle speed | 0-18000rpm |
| Inverter | 7.5kw Fuling inverter |
| Motor and Driver | 750w Japan YASKAWA servo motor and driver |
| Table surface | T-slot and vacuum working table |
| Structure | Heavy Duty 8mm Steel machine bed; 10mm Moving Steel Gantry |
| Lubrication system | Manual lubrication system |
| Transmission |
X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y axis: Sweden ABBA square guide rails with 20mm |
| Vacuum pump | 5.5kw Votex vacuum pump |
| Control box | Independent cabinet |
| Software | UG |
| Rotary | 200mm diameter and 2000mm length of rotary device on Y axis |
