Introduction:

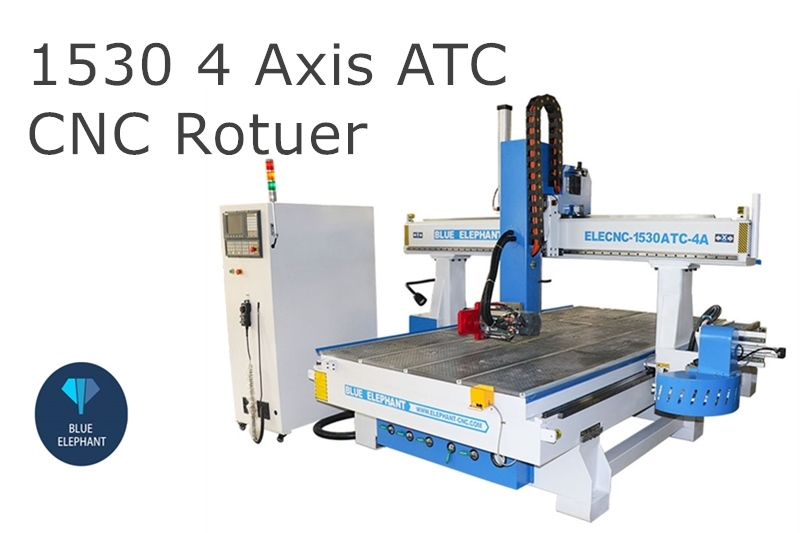

This is a real 4 axis CNC router with automatic tool change function. It is equipped with a rotating spindle, which can swing up to 180 degrees from left to right. This makes it possible to engrave and carving workpieces on left, top, and right surfaces without mannually moving them. Besides, the rotary spindle can also drill holes and make grooves on side surfaces of a wooden board. With a linear tool magazine, it can change tools automatically and quickly, greatly increasing work efficiency and saving labors.
Major parameters of this ATC CNC router
| Items |
Parameter |
| Model |
ELECNC-1530ATC-4 |
| Working area |
1500*3000mm |
| Whole machine size |
1500*3000*400mm |
| Tool magazine |
Linear tool magazine with 8 tools |
| Spindle |
Italy 9kw HSD ATC air cooling spindle |
| Motor and drive |
Yaskawa servo motors and drivers |
| Control system |
SYNTEC 6MB control system |
| Inverter |
Taiwan Delta 11kw B inverter |
| Reducer |
Japan Shimpo reducer |
| Lubrication |
Auto Lubrication system |
| Transmission |
Helical rack gears for X,Y axis
Taiwan TBI ball screw forZ axis |
| Table surface |
Vacuum & T-slot table |
| Voltage |
380v/50hz |
| Tool sensor |
Auto tool sensor |
| Positioning pins |
Round shape Pop-up positioning pins |
| Guarantee |
12 months |
Contact us to know more details about the ATC CNC router.
