Introduction:

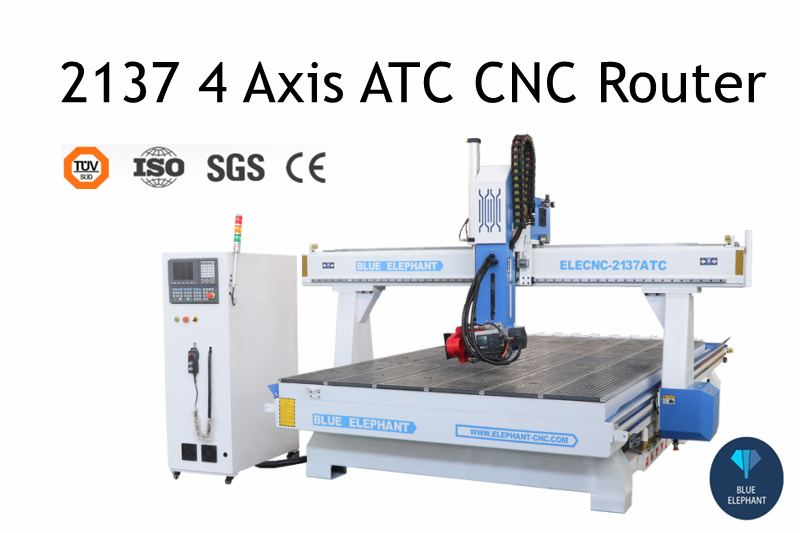

This is a 4 axis CNC router with a working area of 2100x3700mm. The above video shows the process of carving a rifle stock with the help of a rotary device. Besides, the spindle of this CNC router can also rotate up to 180 degrees from left to right. so it can also carve and engrave 3D workpieces without the rotary device. This CNC carving machine is equipped with a linear tool magazine, so it can change tools automatically without human intervention.
Major parameters of this 4 axis CNC router
| Model |
ELECNC-2137ATC |
| Working Area |
2100*3700*400mm |
| Tool Magazine |
20 Tools linear Magazines |
| Working Voltage |
380V,3Phase,50Hz( Option) |
| Control System |
Taiwan SYNTEC 6MB Control System |
| Spindle |
9KW HSD Air Cooling Spindle, can swing ±90° |
| Spindle Speed |
0-24000rpm |
| Inverter |
11KW Taiwan DELTA Inverter |
| Motor & Driver |
850W Japan YASKAWA servo motors and drivers, with Japan SHIMPO Reducer |
| Table Surface |
T-Slot and Vacuum Working Table,8 zones |
| Lubrication System |
1.5L Auto Lubrication System |
| Helical Rack |
1.25M |
| Color |
White and Blue (customizable) |
| Dust Collection System |
3KW Double Bag Dust Collection System(380V,3Phase,50Hz) |
| X,Y,Z Rail |
Taiwan ABBA #25 |
| Vacuum Pump |
2*5.5KW Water Circulation Vacuum Pump(380V,3Phase,50Hz) |
Contact us to know more details about this CNC router machine.
