Introduction:

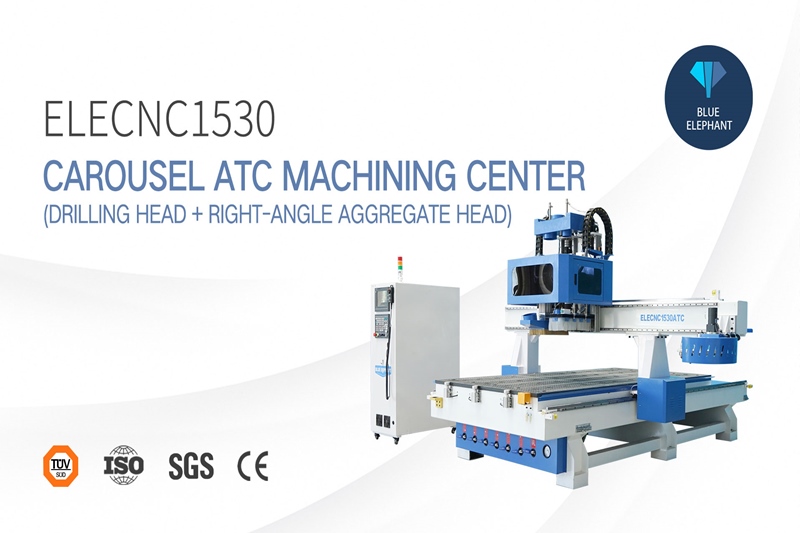

This is our 1530 ATC machining center. It is equipped with an ATC spindle, an HSD 9+3+1 drilling head, an HSD right-angle aggregate head, and a carousel tool magazine. The drilling head can perform horizontal and vertical drilling with high precision. The HSD right-angle aggregate head can rotate by 360°, which is good at processing side surfaces of the workpieces. In addition, the automatic tool change function enables the CNC router machine to change tools automatically without temporarily stopping the machine. All these functions greatly improve working efficiency.
Major parameters of this ATC CNC router
| Working area |
1500x3000x300mm |
| Spindle |
Italy 9.0kw HSD ATC Air cooled spindle |
| Spindle speed |
24000RPM |
| Inverter |
11kW Taiwan Delta |
| Tool magazine |
8pcs carousel tool magazine |
| Control system |
Syntec 11MB control system |
| Motor and driver |
Japan YASKAWA 850W Servo Motor |
| Switch |
Japan Omron |
| Working Table |
Vacuum Table with T slot, 6 Zones |
| Limit switch |
Japan OMRON limit switch |
| Lubrication system |
Automatic lubrication |
| Voltage |
380V, 50Hz, 3 phase |
| Vacuum pump |
German Becker pump |
| X,Y,Z Transmission |
X,Y- 1.25M helical rack pinion, Z axis with 2505 TBI ball screw |
| Frame structure |
New type thicker and bigger heavy duty 8-12 mm |
| Tool sensor |
Automatic tool sensor |
Contact us to know more.
