Introduction:

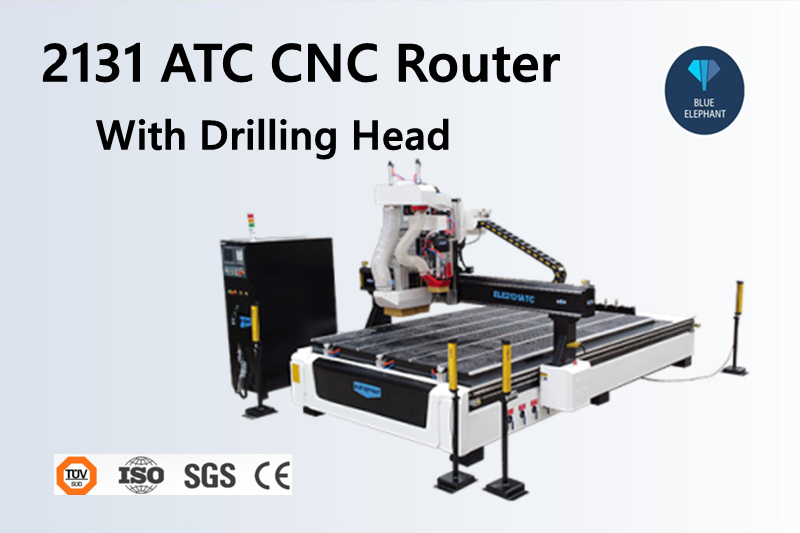

This 2131 ATC CNC machine is popular in furniture processing factories/plants. Designed with a linear type tool magazine and a 9+3+1 drilling head, it saves much labor time and meets your various needs of drilling. Besides, you can also choose light curtains to protect the safety of operators.
Major parameters of 2131 ATC CNC router with 9+3+1 drilling head
| Model |
ELE-2131ATC |
| Working area |
2100*3100*300mm |
| Spindle |
9.6KW HSD Italy original ATC air cooling spindle |
| Tool magazine |
8pcs linear tool magazines with 8pcs ISO 30 tool holders |
| Control system |
Syntec control system |
| Motor and driver |
1000W YASKAWA servo driver and 850W servo motor |
| Lubrication system |
Auto Lubrication |
| Cooling system |
5KW air cooling vacuum pump, 2pcs |
| Vacuum system |
2pcs Pop-up pins on X-axes, 3pcs on Y-axes |
| Tool sensor |
Auto tool sensor |
| Others |
Light curtain on X and Y-axes |
Contact us to know more details.
