Introduction:

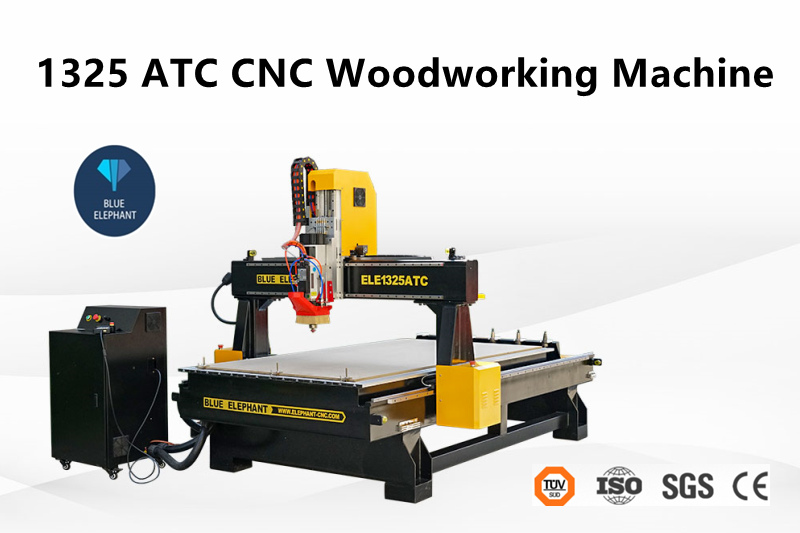

This is an entry-level 3 axis ATC CNC router machine for woodworking. It is equipped with a linear tool magazine holding 6 tools, which enables it to complete different processes without stopping the machine to change tools manually. The ATC CNC router is good at processing various wood materials, like solid wood, MDF, plywood, melamine, etc. It is a good choice if you want an ATC CNC router but tight in budget.
Major parameters of this ATC CNC router
| Description |
Parameter |
| Lubrication system |
Auto Lubrication system |
| X, Y, Z Working Area |
1300x2500x400 mm |
| Structure |
Industrial class square tube strong structure |
| Working voltage |
220v,3ph,50hz |
| Table Surface |
T-slot and vacuum working table |
| Spindle |
9kw HQD air cooling ATC spindle |
| Spindle speed |
0-18000rpm |
| Motor and driver |
750w Leadshine servo motor |
| Inverter |
11kw Fuling inverter |
| Dust Collector |
1.5kw new type dust collector |
| Control System |
NK105 G3 control system |
| Sprayer |
Water cooling sprayer for aluminum |
| Limit |
Japan Omron limit |
| Tool sensor |
6 pcs auto tool sensor calibration |
