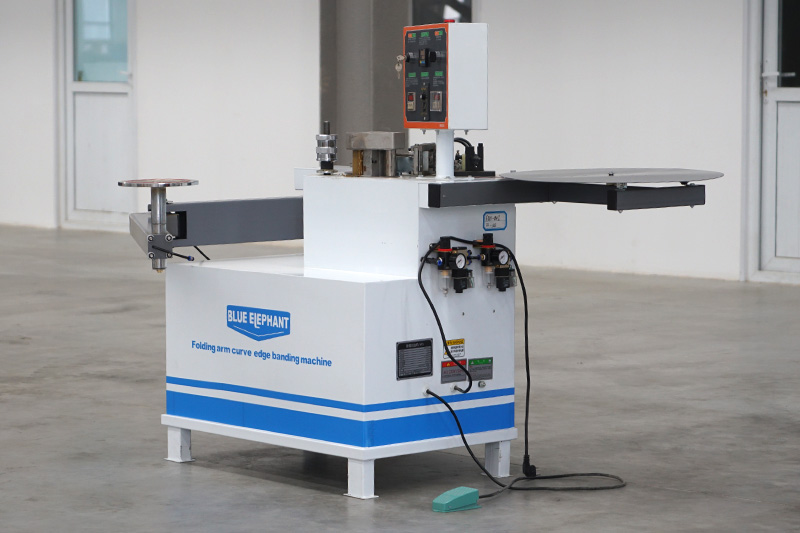

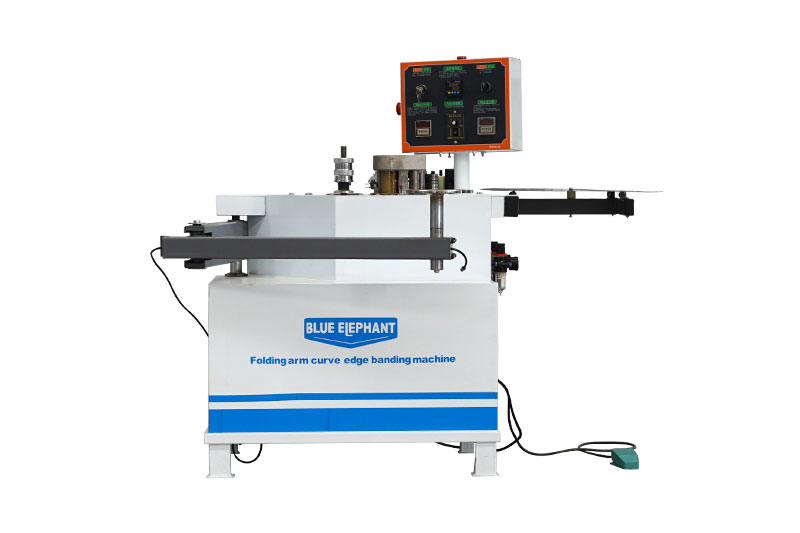

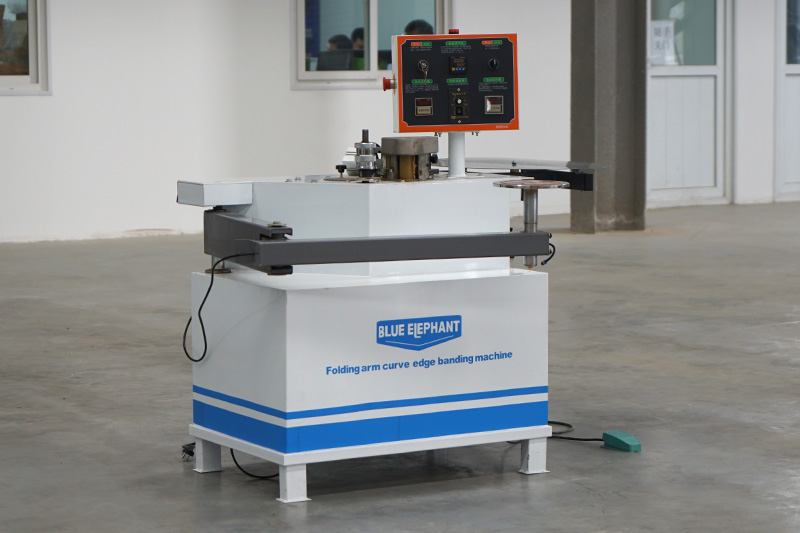

W1 Folding-arm Edge Bander
F97 Manual Edge Banding Machine

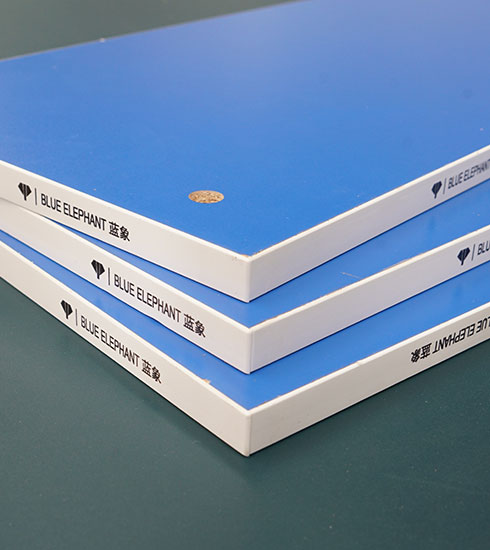

This manual edge banding machine can choose to apply glue on both sides of the sheet and cover tape, and the glue is evenly applied. It can seal the side curve and straight line of the board, and widely used in edge banding of furniture, cabinets, interior decoration, etc.
1. With the timing break function, it can realize flexible switching between feeding and cutting.
2. Equipped with suction cups, it has the advantages of strong bearing capacity and strong stability.

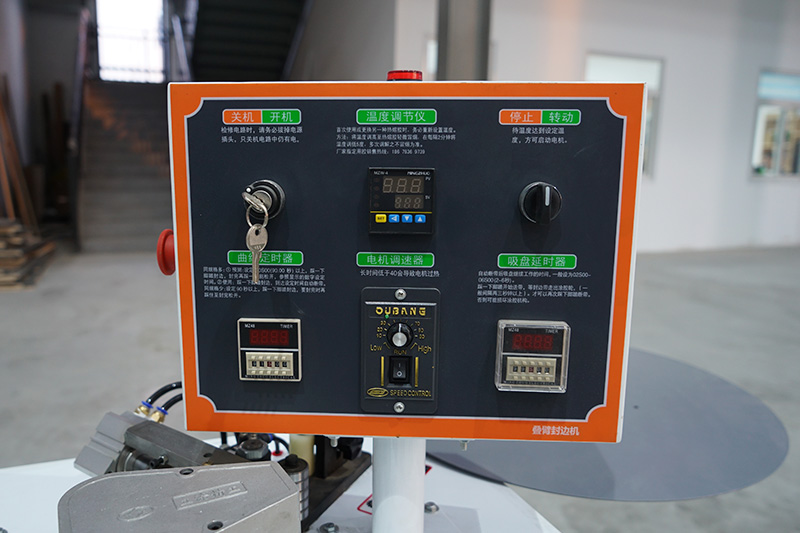

3. Adopting intuitive digital display operation panel, it is easy to operate.
4. Edge banding materials include PVC, veneer, melamine, plastic and other materials.
| Voltage | 220V, 50hz |
| Heating power | 1.2kw |

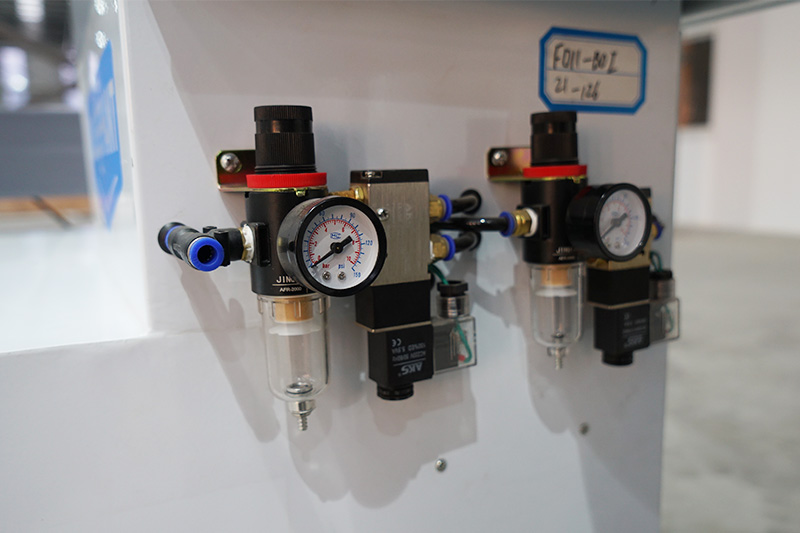

| Air pressure | 0.3-0.6mpa |
| Motor Power | 0.18kw |
| Total power | 1.4kw |
| Edge thickness | 0.3-3mm |
| Edge width | 8-50mm |
| Edge banding speed | 0-26cm/s |
| Dimensions | 125*74*98cm |
| Weight | 88kg |
Click for details

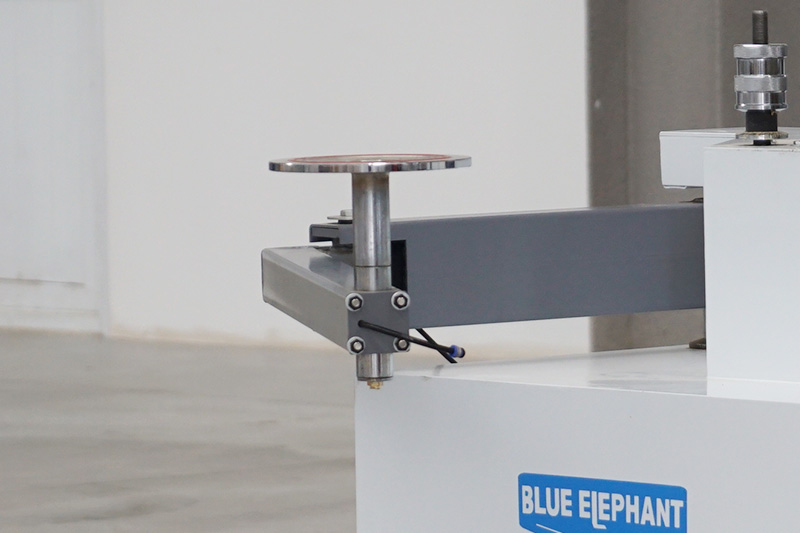

folding arm edge bander
