4 Axis CNC Router Engraving MDF
4 Axis CNC Router Cavring Foam

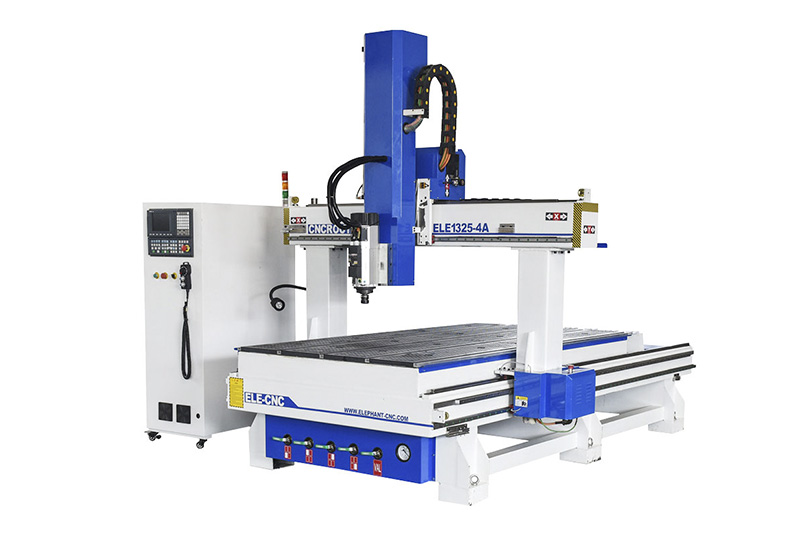

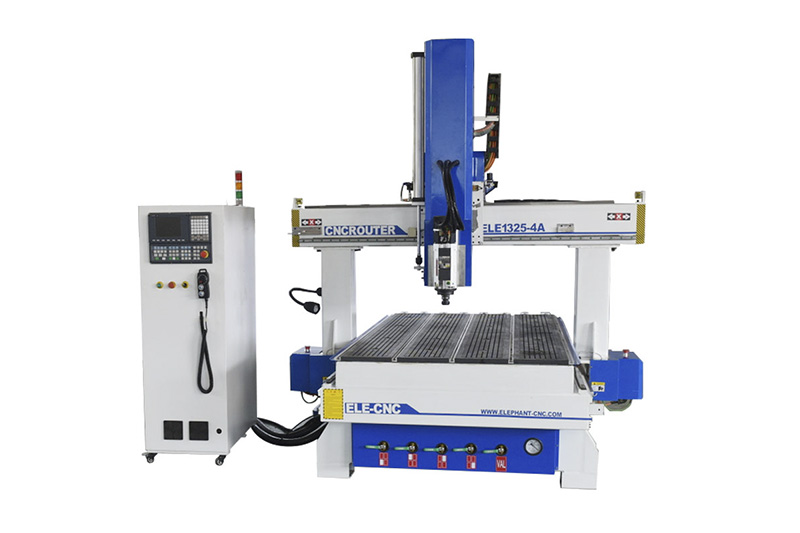

1325 ATC CNC 4 axis wood carving machine has a popular table size of 1300*2500mm. It adopts Taiwan SYNTEC 4-axis control system and auto tools storage for tool management, saving tool changing time. And the 4 axis spindle is good at complex 3D wood carving.
1. Linear tool changer manages more than 8 sets of tools automatically.
2. 4 axis HSD Spindle with a top speed of up to 24000RPM, it swings 180 degrees for 3D wood carving.
3. Heavy-duty frame and gantry, 8-10mm thickness steel; Taiwan Syntec control system with operation panel.
4. Automatic lubrication system reduces wearing out of CNC transmission parts.
| Model | ELECNC1325ATC-4A |
| X,Y axis travel | 1300*2500mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Spindle swing from -90 degree to +90 degree |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | ≥0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63),etc |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 300mm |
Click for details

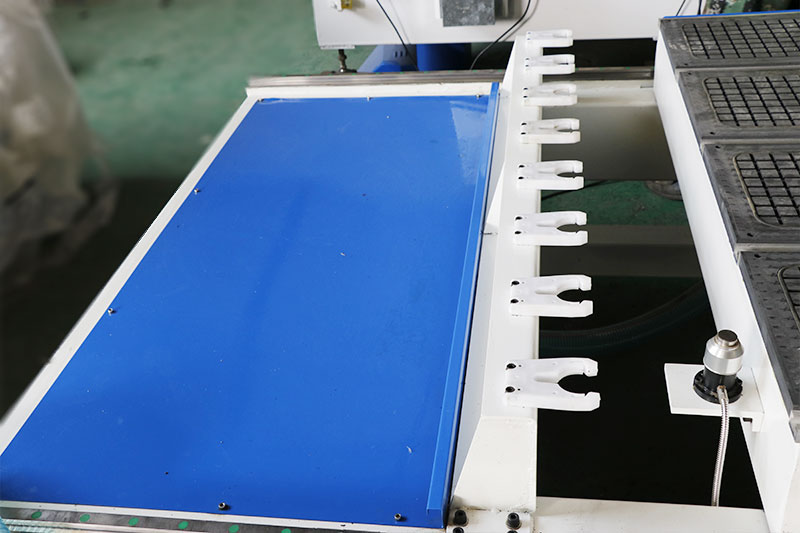

Tool magazine
Tool holder

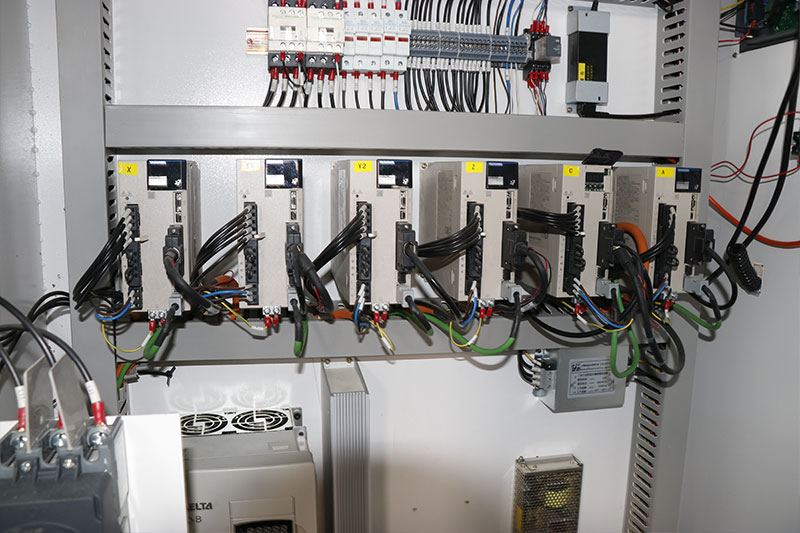

Electric parts

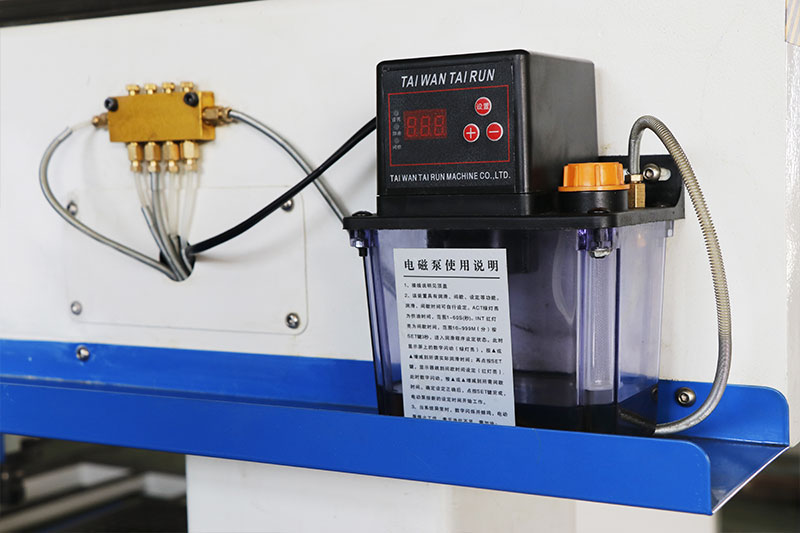

Lubrication
