Jinan Blue Elephant CNC Co., Ltd. is proud to announce the launch of a new stone processing production line - a fully automatic “5 Axis CNC Granite Bridge Saw Cutting Line”.
This innovative stone cutting solution aims to completely revolutionize the stone processing industry, offering unprecedented performance and efficiency to meet a wide range of needs.
What Is the 5 Axis CNC Granite Bridge Saw Production Line?
The 5 axis granite, marble and quartz bridge saw cutting line integrates cutting, milling, drilling, polishing into one. It also has advanced functions of photo positioning and typesetting, automatic measurement, automatic loading and unloading, etc. It is widely used in the tombstone manufacturing, cabinet stone countertops, bathtubs, stone dressing tables, ceramic tiles and other stone machining industries.
learn more
The 5-axis CNC granite bridge saw production line is a precision automated system used in the stone processing industry for cutting and shaping granite and other stone materials. The line combines cutting, milling, milling, polishing and other technologies to simplify the manufacturing process of sophisticated stone products such as countertops, monuments, sculptures and architectural elements.
How Does A 5 Axis CNC Granite Bridge Saw Production Line Work?

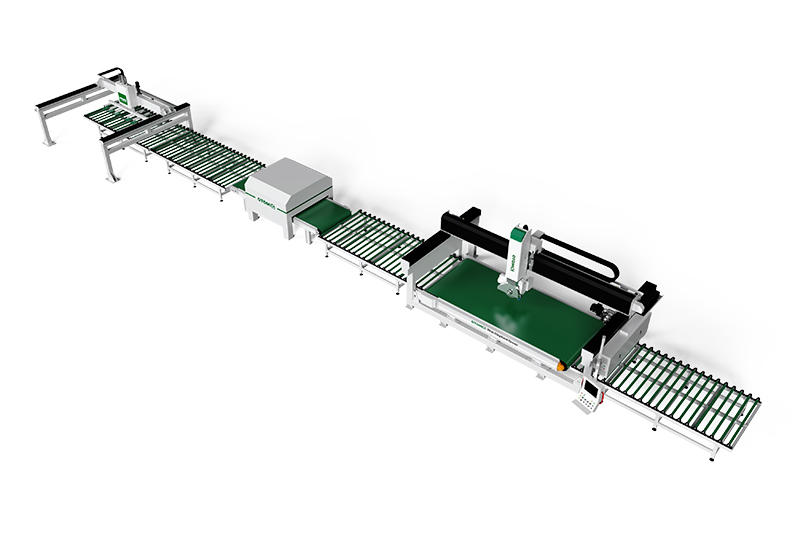

The large granite stone slabs are placed on the processing line through an automatic loading system. Then, the granite slabs are transported to the belt-type 5-axis bridge cutting machine by the transition frame system. The 5-axis CNC bridge saw machine automatically retrieves the cutting plan (or on-site typesetting) of the granite slabs to implement auto tool setting and granite slab cutting. After finishing the granite cutting, various granite CNC projects will be automatically sorted and unloaded by the unloading system to designated wire racks or palletizing racks.
8 Advantages of 5 Axis CNC Granite Bridge Saw Production Line
A 5-axis CNC granite bridge saw production line offers several significant advantages for the stone fabrication industry compared to traditional manual methods and even standard stone CNC machines. These advantages contribute to increased precision, efficiency, versatility, and overall productivity. Here are some of the key advantages.
Precision and Accuracy
5-axis CNC machines can move and cut from multiple angles simultaneously, ensuring precise and accurate cuts, even on complex and intricate designs. This precision reduces the need for manual corrections and minimizes material wastage, resulting in cost savings.
Complex Geometries
The 5 axis CNC granite cutting line can move the cutting tool in multiple directions allows for the creation of intricate and complex shapes and contours that would be challenging or impossible to achieve manually.
Efficiency and Speed
Automation and simultaneous multi-axis movement significantly reduce production time. The CNC granite and marble cutting line can work continuously without the need for breaks, leading to higher production rates.
Consistency
5-axis CNC granite and quartz cutting line produce consistent results, ensuring that each product matches the design specifications exactly. This consistency is essential for large-scale projects and maintaining high-quality standards.
Reduced Labor Costs
Automation reduces the need for skilled labor to perform manual cutting and shaping tasks, as well as the risk of human error, leading to fewer mistakes and reworkleading to cost savings in labor expenses.
Material Optimization
The precision of the 5 axis bridge saw articial stone cutting line allows for efficient nesting of parts on stone slabs, minimizing material wastage. This can result in cost savings on raw materials over time.
Versatility
5-axis CNC bridge saw production line can work with various stone materials, including granite, marble, quartz, and more, making them suitable for a wide range of applications. It can also accommodate different thicknesses and sizes of stone slabs.
Scalability
The granite CNC production line can be scaled up or down easily to meet the demands of different projects, from small custom pieces to large-scale commercial installations.
What Can A 5 Axis CNC Granite Bridge Saw Production Line Do?
Cutting and Profiling
The primary function of a 5-axis CNC granite bridge saw is to cut stone slabs into precise shapes and sizes. It can create straight cuts, curves, angles, and intricate designs with high accuracy.
3D Contouring
Unlike 3-axis CNC machines, which can only move in three directions (X, Y, and Z), a 5-axis CNC bridge saw machine adds two additional rotational axes. This enables the machine to perform 3D contouring, allowing for intricate and complex designs with curved surfaces.
Miters and Bevels
The additional axes allow the granite cutting line to cut bevels and miters with ease. This capability is essential for creating countertops, tabletops, and other stone surfaces with precise edges.
Sink and Faucet Cutouts
The granite production line can cut out holes for sinks and faucets in stone countertops with great precision. This ensures that the cutouts align perfectly with the fixtures.
Engraving
5-axis CNC granite cutting line can be equipped with specialized tools for engraving and inlay work. This is often used for adding decorative elements or text to stone surfaces.
How Much Does A 5 Axis CNC Granite Bridge Saw Production Line Cost?
At present, the Blue Elephant 5 axis bridge saw CNC granite production line has the price ranges start at lest $70,000. However, Blue Elephant offers various configurations and customization options to meet different budgets and project requirements of different customers. Flexible pricing plans will ensure that every customer receives the best value for their investment.
Conclusion
In summary, a 5-axis CNC granite bridge saw production line offers improved precision, efficiency, consistency, and versatility in stone fabrication processes, leading to cost savings and enhanced capabilities for businesses in the industry. These advantages make it an essential technology for modern stone fabrication operations.
We will update more stone processing production lines in the future. If you want to know more about stone processing information, please continue to pay attention to us.
