How To Do “Part Work” In DSP B18 Handle Control System
Click:

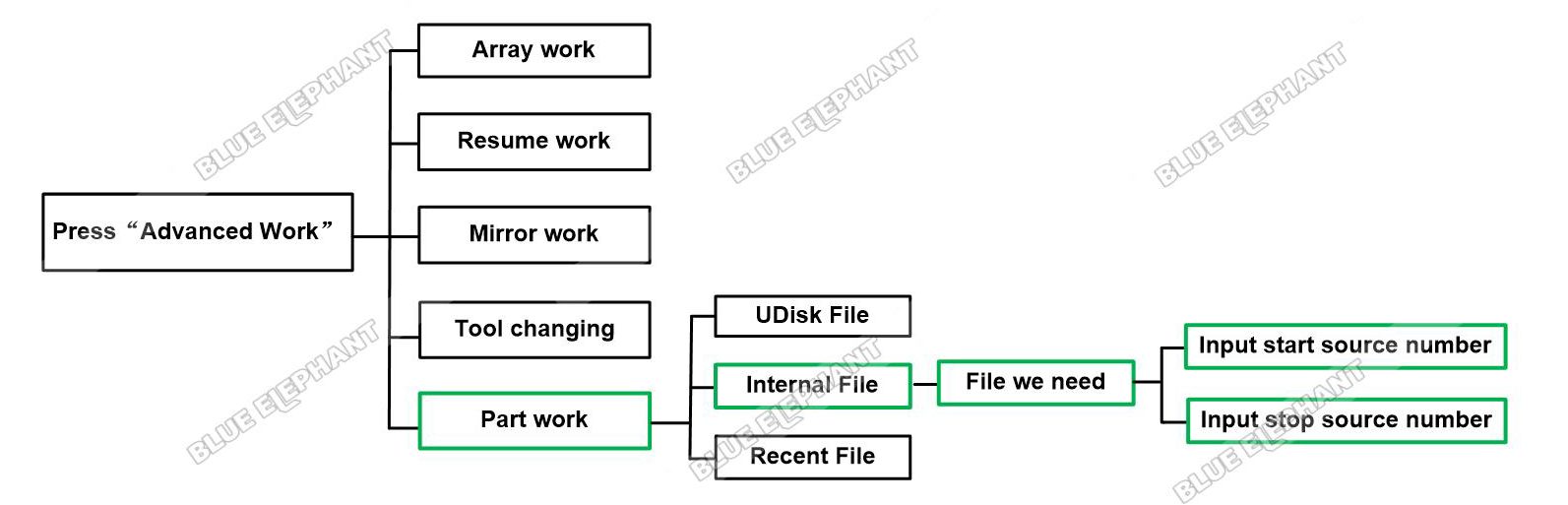

The steps are as follows.

  • Press”ADVANCED FUNCTION”button,then choose “Park Work”
  • Enter”SelectWorkFile”interface.For example,we choose “Internal File”
  • Choose the file we need  For example,we choose “SONIC.NC”
  • Input the start source number of working
  • For example,we start from NO.210
  • Input the stop source number of working
  • For example,we end in NO.862
  • Press”REF/OK”button,it will continue to work.

The video is as follow.
